treadscan.detector

FrameExtractor

class treadscan.detector.FrameExtractor(input_path: str, input_type: InputType)

Class for extracting GRAYSCALE frames from video or folder of images.

Attributes

input_typetreadscan.InputType

Folder of images (has to be sorted alphabetically) or video/stream (cv2.VideoCapture compatible).

frame_indexint

Number of frame (frame returned by next_frame), starts at 1 (first frame is frame 1).

fileslist of str

Sorted list of paths to individual images (when using image folder input).

videocv2.VideoCapture

Loaded video/stream (when using video input).

endOptional[int]

Index of last frame to be extracted (when using treadscan.InputType.IMAGE_FOLDER).

Methods

next_frame()

Returns next frame in sequence, None if at the end.

next_frame() → Optional[ndarray]

Gets the next frame from input, converts it to grayscale and returns it.

Returns

numpy.ndarray

The next frame as grayscale image.

None

When at the end of sequence (end of video/stream).

set_folder_bounds(start: Optional[int] = None, end: Optional[int] = None)

Set start and/or end index of images in image folder.

Parameters

startOptional[int]

Index of first frame.

endOptional[int]

Index of last frame.

Raises

RuntimeError

When trying to set bounds but FrameExtractor doesn’t have folder as treadscan.InputType.

ValueError

When end > start.

InputType

class treadscan.detector.InputType(value)

Enum class specifying types of input for Detector class.

IMAGE_FOLDER :

Path to folder which contains only images (sorted alphabetically). Alternative to having to encode them into a video, which would just be decoded again, as footage is processed frame by frame.

VIDEO :

Path to video file.

STREAM :

Path or URL, see OpenCV’s VideoCapture class. Supports video files, image sequences or cameras.

BackgroundSubtractorSimple

class treadscan.detector.BackgroundSubtractorSimple(background_sample: ndarray, intensity_threshold: int = 50)

Simple background subtractor immune to sleeping person phenomenon (an object that stops moving won’t become a part of the background). This subtractor doesn’t adapt to changing background and needs to be provided with one manually. Only works with grayscale images.

Same interface as OpenCV’s BackgroundSubtractor (https://docs.opencv.org/3.4/d7/df6/classcv_1_1BackgroundSubtractor.html).

Attributes

background_samplenumpy.ndarray

Image of empty background (without foreground objects present).

intensity_thresholdint

Minimal difference between pixel values to be subtracted. If the difference is smaller than this threshold, the pixel is regarded as a background pixel.

Methods

apply(image: numpy.ndarray)	Returns mask of foreground objects.
getBackgroundImage()	Returns background image.

apply(image: ndarray, fgmask=None, learningRate: float = -1) → ndarray

Remove background from image.

Parameters

imagenumpy.ndarray

Image from which to remove background.

fgmaskNone

learningRatefloat

Does nothing in the case of BackgroundSubtractorSimple.

Returns

numpy.ndarray

Binary mask of foreground objects.

Raises

RuntimeError

If image isn’t grayscale.

getBackgroundImage(backgroundImage=None) → ndarray

Implemented for compatibility.

Parameters

backgroundImageNone

Returns

numpy.ndarray

Background image.

Detector

class treadscan.detector.Detector(backsub: BackgroundSubtractor, frame_extractor: FrameExtractor)

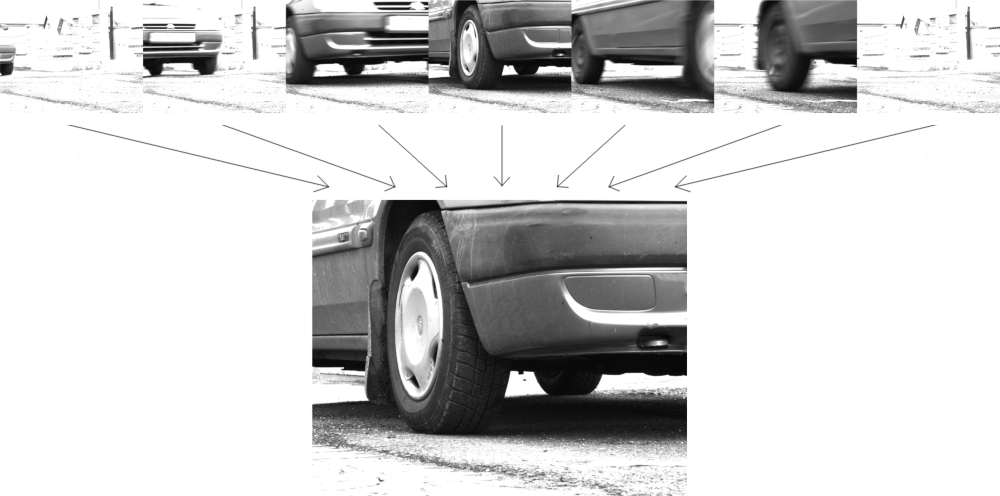

Detects presence and motion of a vehicle from footage, yielding 1 image per 1 stopped vehicle.

Input can either be a folder full of images (has to be sorted) or a video/stream.

Attributes

backsubcv2.BackgroundSubtractor

Instance of a background subtractor.

frame_extractortreadscan.FrameExtractor

Frame extractor used to get frames from input footage for detection.

vehicle_thresholdfloat

Minimum percentage of ‘not background’ pixels to evaluate image as containing a vehicle.

motion_intensity_thresholdint

Difference between pixels needed to be classified as ‘motion’ (between 2 subsequent images).

motion_thresholdfloat

Minimum percentage of ‘moving’ pixels to evaluate 2 subsequent images as having motion.

focus_intensity_thresholdint

Compare focus (or blurriness, by edge detection) in parts of image that are darker than this threshold.

lookup_tablecollections.OrderedDict

HashTable with hashes of images and their Laplacian variance. Used when comparing blurriness of frames to avoid needlessly calculating the same variance of the same image multiple times.

lookup_table_max_sizeint

Maximum size lookup_table can grow to before old values start being purged to limit memory usage.

Methods

detect(scale: float, window: int)	Generator which yields one image per one stopped vehicle. Uses a window, in which it detects vehicle presence and whether it is moving or not. Window opens when a vehicle is detected as stopped and closes when vehicle starts moving again. The generator then yields the best focused (least blurry) frame from this window.
set_params(vehicle_threshold: Optional[float], motion_threshold: Optional[float],	motion_intensity_threshold: Optional[int], focus_intensity_threshold: Optional[int]): Sets detection parameters.
vehicle_mask(image: numpy.ndarray)	Returns binary mask of vehicle.
motion_mask(image1: numpy.ndarray, image2: numpy.ndarray)	Returns binary mask of motion between two images.
cached_laplacian_var(image: numpy.ndarray, strategy: str, scale: float)	Calculates Laplacian variance of image.
compare_image_focus(image1: numpy.ndarray, image2: numpy.ndarray)	Compares blurriness of the two images, returns the less blurry one.
get_full_detection_data(scale: float, window: int)	Generate datasets for analysis of detection parameters.

cached_laplacian_var(image: ndarray, strategy: str = 'aggressive', scale: float = 0.25)

Calculates variance of the Laplacian operator on DARK parts of the image (darker than self.focus_intensity_threshold). Uses hashtable to cache results.

Parameters

imagenumpy.ndarray

Input image.

strategystr

Strategy to employ when clearing hashtable (making space for new results after it has been filled).

‘aggressive’ : Clean entire hashtable (default).

‘lazy’ : Remove exactly 1 entry (the oldest one).

Any other value defaults to ‘aggressive’ strategy.

scalefloat

Resize image before edge detection (faster for large images).

Returns

float

Variance of Laplacian operator.

Notes

Uses a hashtable to store previous results, as the main method, Detector.detect() may use Laplacian variance to compare blurriness of one image multiple times. Using a cached results avoids having to compute the same value for the same image multiple times, improving performance.

compare_image_focus(image1: ndarray, image2: ndarray) → ndarray

Compare blurriness between two images, return the less blurry one.

Parameters

image1numpy.ndarray

image2numpy.ndarray

Returns

numpy.ndarray

The less blurry image of the two.

detect(scale: float = 0.25, window: int = 50) → Generator[ndarray, None, None]

Generator which yields one frame for footage per one stopped vehicle.

Parameters

scalefloat

Rescales footage down (to speed up processing).

windowint

Number of frames that are also considered (starts with first frame where stopped vehicle is detected). Compensates for small movements and noise in footage that could otherwise cause one vehicle to yield multiple images. The higher the framerate, the longer window is recommended.

Yields

numpy.ndarray

One image per one stopped vehicle from footage.

Raises

ValueError

If scale factor is not between 1 and 0.

RuntimeError

If failed to fetch first frame from footage.

get_full_detection_data(scale: float = 0.25, window: int = 50) -> (<class 'list'>, <class 'list'>, <class 'list'>, <class 'list'>)

Create datasets from footage for analysis, visualisation or easier parameter selection (picking the perfect thresholds for example).

Parameters

scalefloat

Rescales footage down (to speed up processing).

windowint

Number of frames that are also considered (starts with first frame where stopped vehicle is detected). Compensates for small movements and noise in footage that could otherwise cause one vehicle to yield multiple images.

The higher the framerate, the longer window is recommended.

Returns

(list, list, list, list)

Tuple of four datasets, vehicle presence, vehicle motion, vehicle blurriness and window status. All four contain data-points for each frame of footage, so even the vehicle blurriness dataset contains data of frames where no vehicle is present.

Raises

ValueError

If path to video or folder doesn’t exist or cannot be read.

RuntimeError

If failed to fetch first frame from footage.

motion_mask(image1: ndarray, image2: ndarray) → ndarray

Determines whether there is motion between two images. Returns binary mask of detected motion.

Uses self.motion_intensity_threshold as the threshold of minimum difference of pixel values to evaluate them as “having changed” - moving, and self.motion_threshold as the threshold of percentage of pixels that are “moving” to evaluate the images as having motion.

Parameters

image1numpy.ndarray

image2numpy.ndarray

Returns

numpy.ndarray

Binary mask of detected motion.

set_params(vehicle_threshold: Optional[float] = None, motion_threshold: Optional[float] = None, motion_intensity_threshold: Optional[int] = None, focus_intensity_threshold: Optional[int] = None)

Set parameters used to detect stopped vehicles(s) from footage. If parameter is None then it remains unchanged.

Parameters

vehicle_thresholdfloat

Minimum percentage of ‘not background’ pixels to evaluate image as containing a vehicle. (Minimum size of vehicle in image).

motion_thresholdfloat

Minimum percentage of ‘moving’ pixels to evaluate 2 subsequent images as having motion.

motion_intensity_thresholdint

Difference between pixels needed to be classified as ‘motion’ (between 2 subsequent images).

focus_intensity_thresholdint

Compare focus (or blurriness) of images using edge detection (variance of the Laplacian operator) in parts that are darker than this threshold.

Raises

ValueError

When provided parameter is out of range or if path to image doesn’t exist or is not readable.

vehicle_mask(image: ndarray) → ndarray

Detects vehicle in image by subtracting background. Returns binary mask of vehicle.

Parameters

imagenumpy.ndarray

Input image.

Returns

numpy.ndarray

Binary mask of vehicle (foreground object).
